MSI MAG A1250GL PCIe 5 Gold Power Supply Unit

MSI MAG A1250GL PCIE5 – Key Features:

• 1250 W fully‑modular power supply, 80 PLUS Gold certified

• Native PCIe 5.1 (16‑pin / 12V‑2×6) connector (supports up to 600W) for next‑gen GPUs

• Compliant with ATX 3.1 / ATX 3.0 standards; supports up to ~2500W power excursion

• Single +12V rail design (~104A) with full‑bridge LLC + DC‑to‑DC topology

• Full protection suite: OVP, OCP, OPP, OTP, SCP, UVP

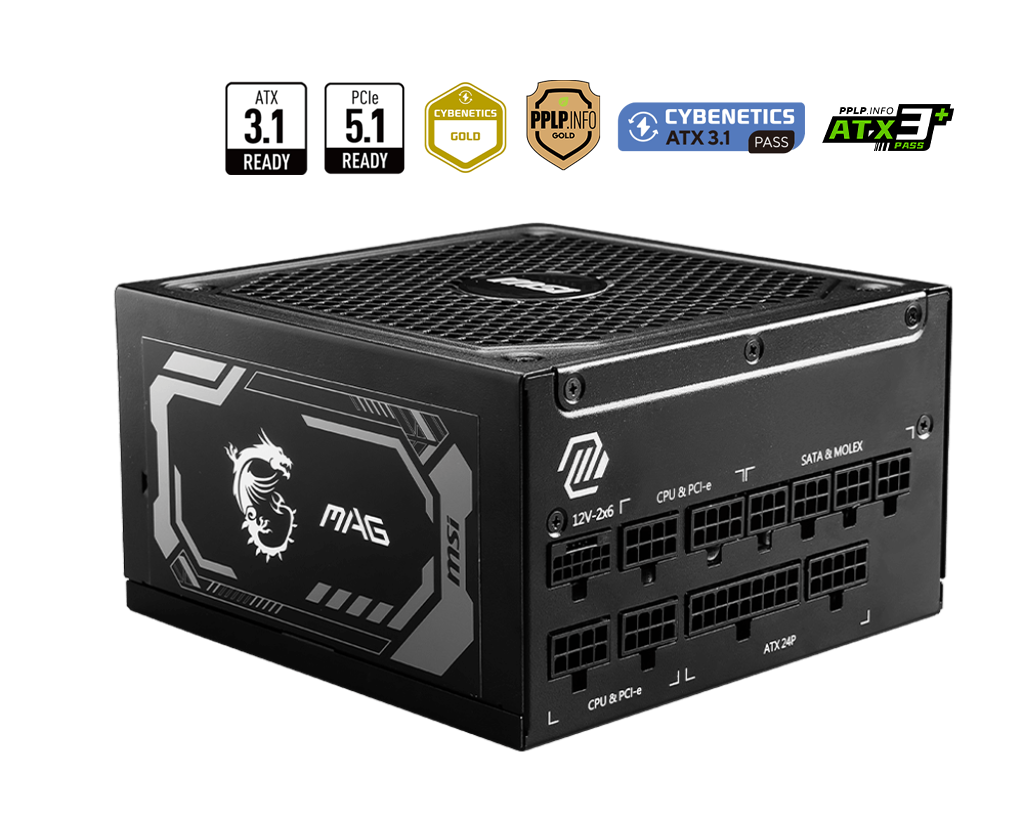

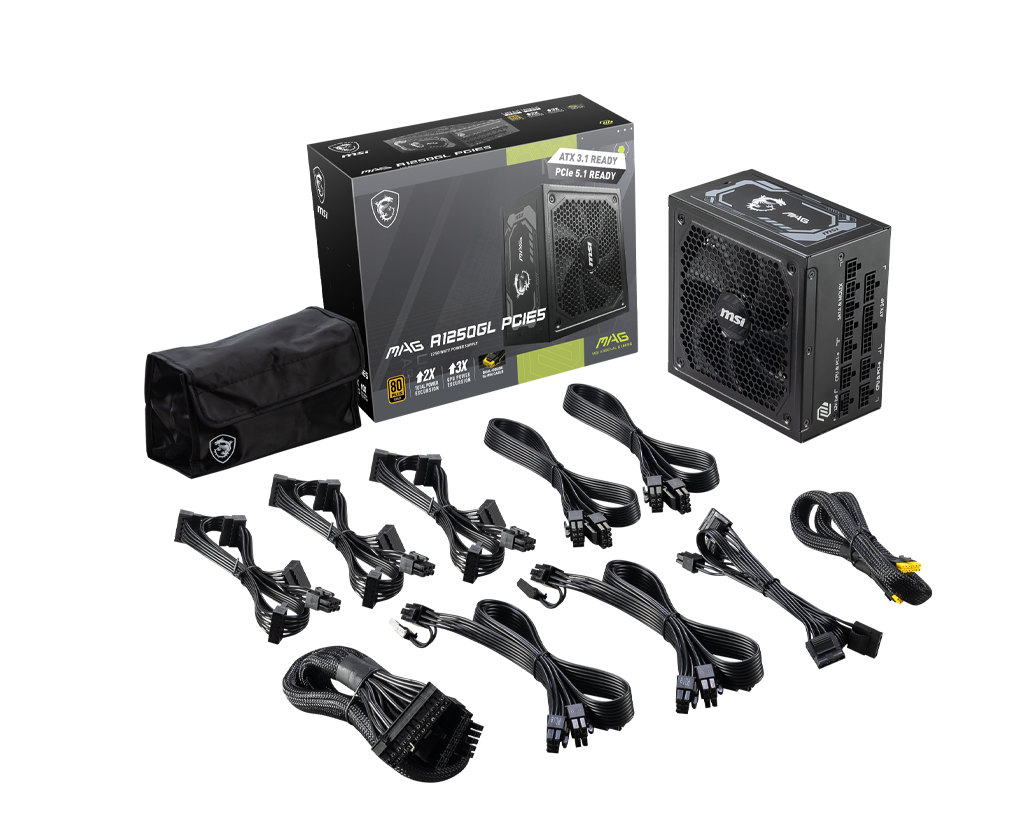

• Modular flat cables; connectors include 1× ATX 24‑pin, 2× EPS 4+4‑pin, 4× PCIe 6+2‑pin, 12× SATA, 4× Molex

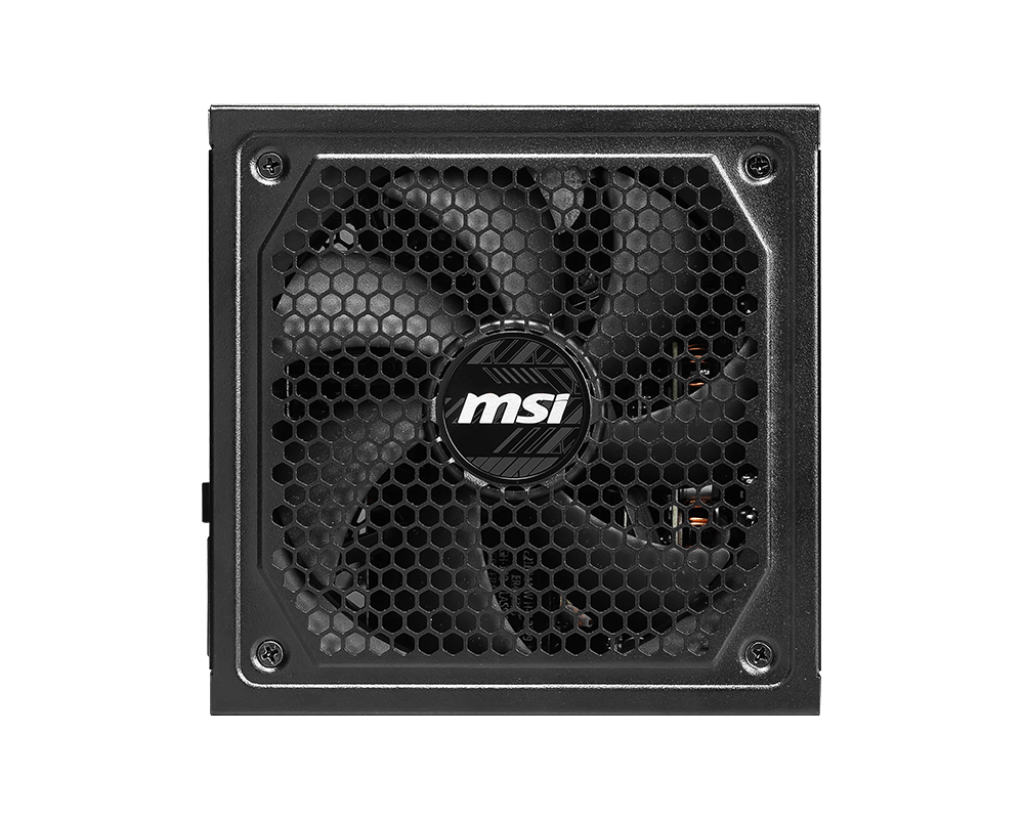

• 135 mm Fluid Dynamic Bearing fan for efficient & quiet cooling

• Compact form‑factor: 150 × 150 × 86 mm
