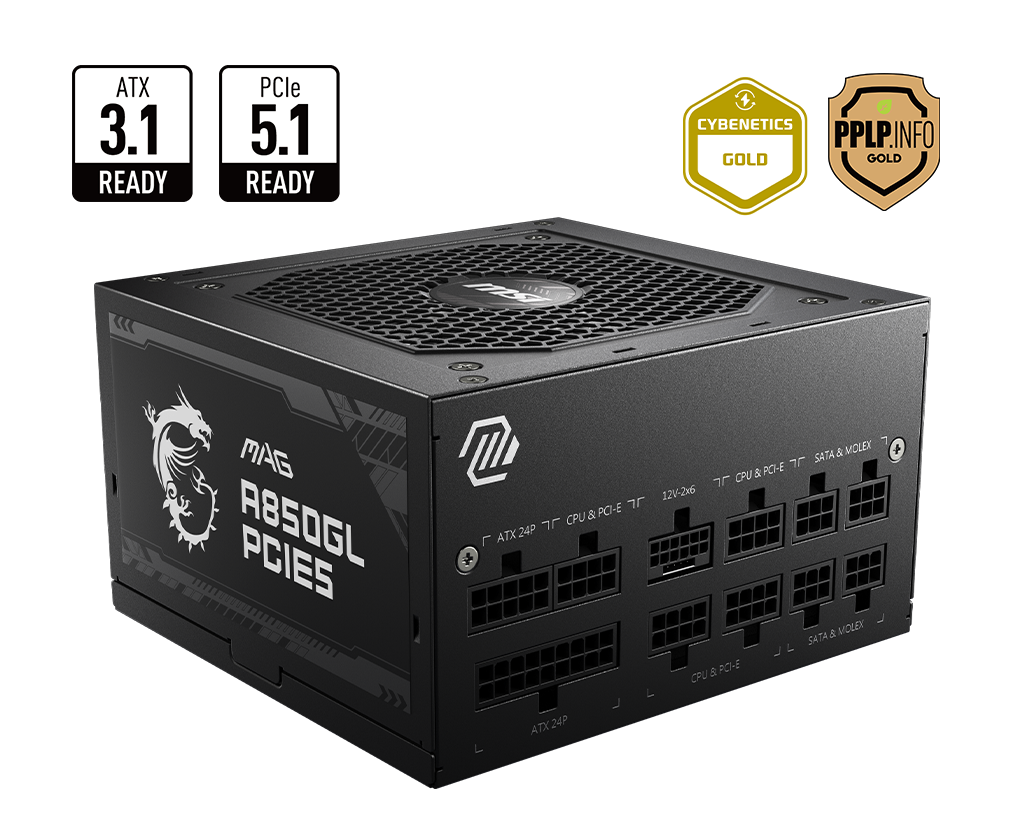

MSI MAG A850GL PCIe 5 Gold Power Supply Unit

MSI MAG A850GL PCIe5 – Key Features:

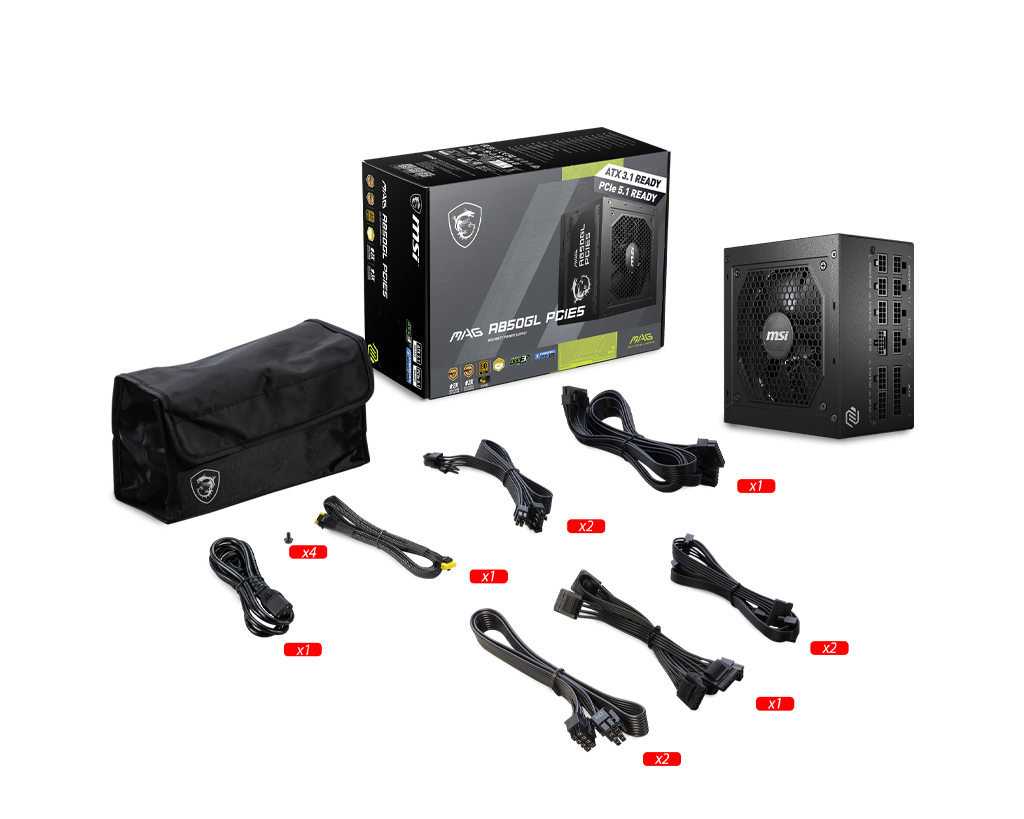

• 850 W fully-modular PSU with 80 PLUS Gold efficiency

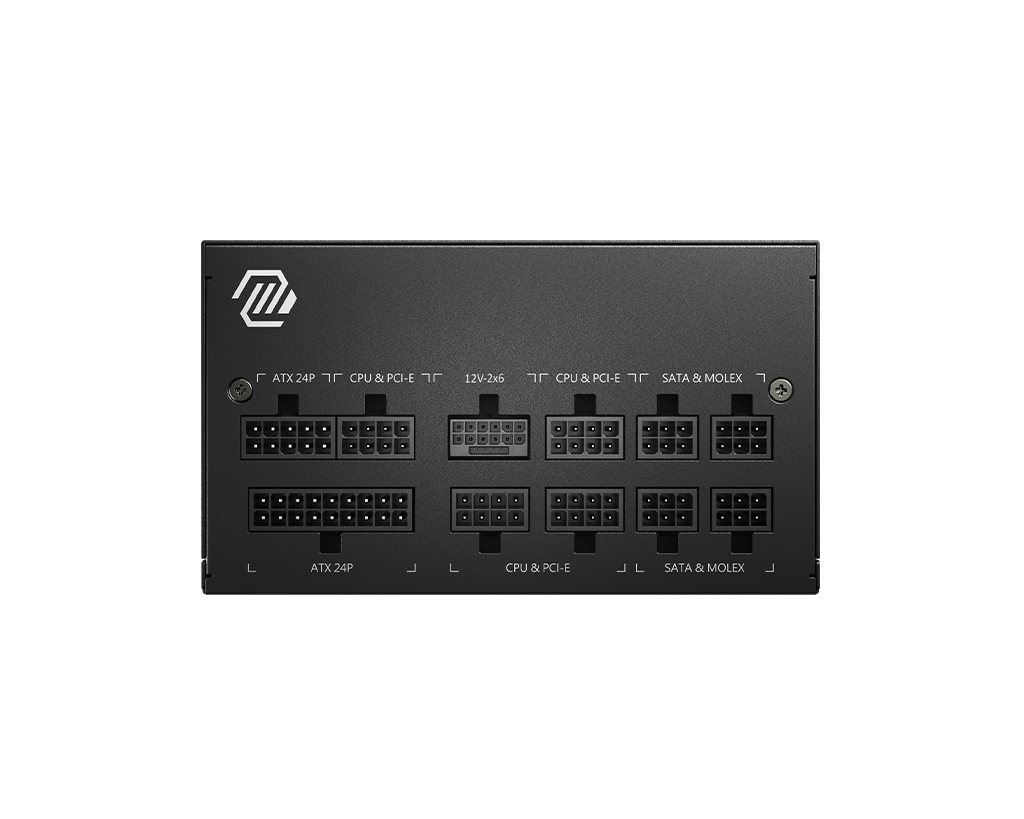

• Native PCIe 5.0 / ATX 3.0/3.1 support with 16-pin (12 VHPWR) connector for next-gen GPUs

• Full-bridge topology + DC-to-DC design for stable voltage delivery

• Single +12 V rail (~70.5 A) capable of ~846 W output

• Full protection suite: OVP, OCP, OPP, OTP, SCP, UVP

• Compact dimension: 140 × 150 × 86 mm

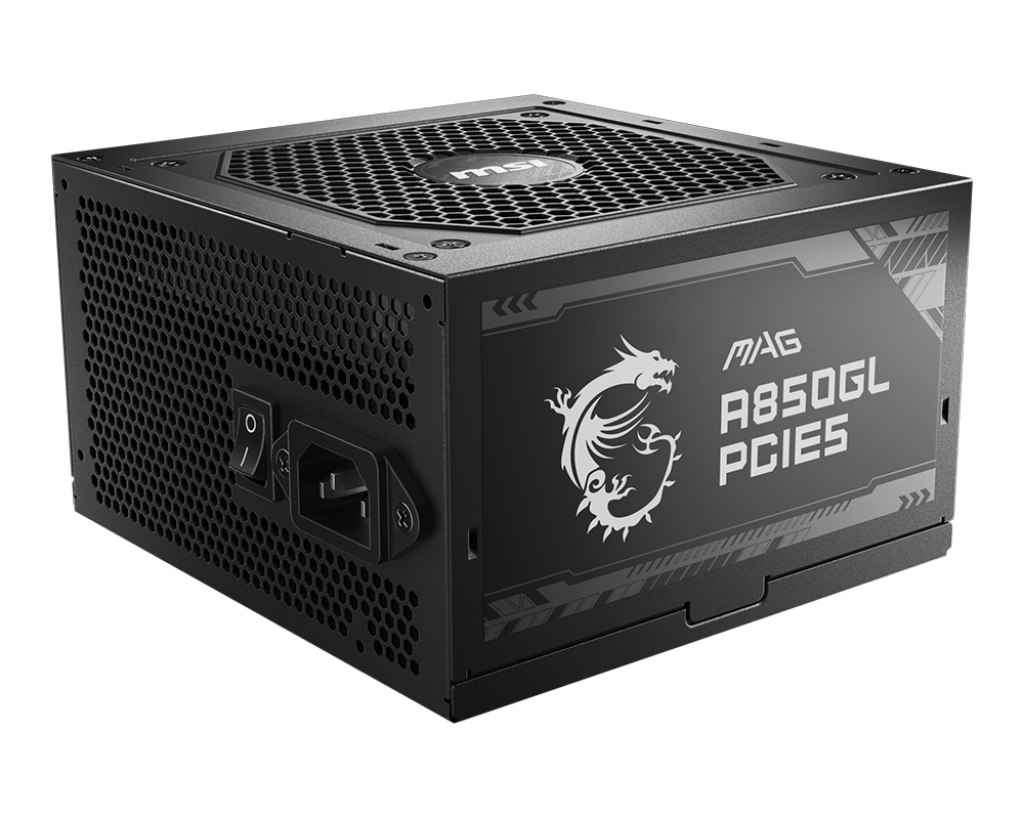

• Quiet 120 mm Fan with Fluid Dynamic Bearing

• High-quality components: flat black cables, active PFC, wide input voltage (100-240 V)

• Future-proof power excursions: Supports up to ~1700 W peak demand (~200% of rated)
